Hot Air Oven

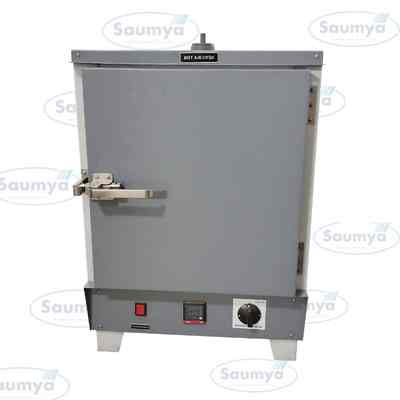

Hot Air Oven Standard Model

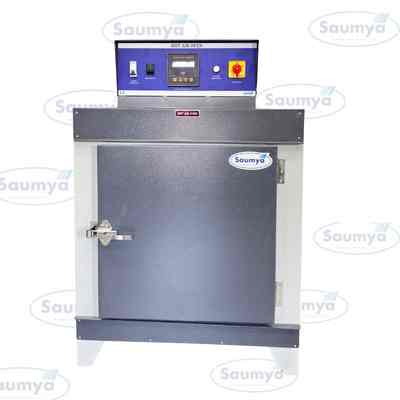

Hot Air Oven Memon Model

Air Circulating Hot Air Oven

Saumya’s Air Circulating Hot Air Oven is a specialized industrial oven designed to provide uniform, controlled, and accurate heating for a wide range of laboratory and industrial applications. The oven utilizes a forced air circulation system to ensure even heat distribution throughout the chamber, eliminating temperature variations and delivering consistent and reliable results.

Built for long-term use, the oven features a robust construction with high-quality insulation, ensuring minimal heat loss and safe operation. Advanced digital PID controllers maintain precise temperature control, making the equipment suitable for critical testing and thermal processing applications. It is widely used for drying, conditioning, heat ageing, and testing of thermoplastic pipes and fittings.

Saumya offers the Hot Air Oven in two variants — Standard Model and Memon Model. The Standard Model is designed for general laboratory and industrial heating applications, providing reliable and efficient performance. The Memon Model is specially designed for pipe and fitting testing applications, ensuring enhanced temperature uniformity and compliance with specific testing requirements.

Available in various sizes with customization options, the oven is ideal for laboratories, quality control departments, and production environments requiring precise and dependable thermal performance.

Application

  • Heat ageing and thermal stability testing of thermoplastic pipes and fittings
  • Pre-conditioning of samples for mechanical and physical testing
  • Used in pipe manufacturing industries for quality verification
  • Suitable for temperature-based performance evaluation of materials
  • Applied in industrial drying and curing processes
  • Used for batch-wise consistency testing in production lines
  • Supports testing as per industry-specific standards and protocols
  • Useful in calibration and validation of thermal processes
  • Applied in research and development for material behavior analysis

USP

  • Memon model specially designed for pipe and fitting testing applications
  • Available in Standard and Memon models for different application needs
  • Ensures high temperature uniformity across the chamber
  • Advanced insulation minimizes heat loss and improves energy efficiency
  • Precision PID control for accurate and stable temperature maintenance
  • Optimized airflow system for consistent thermal performance
  • Customizable chamber sizes for application-specific requirements
  • Designed for continuous operation in industrial environments
  • Reliable performance for critical and compliance-based testing
  • Easy operation with minimal manual intervention

Model Specifications

Features Standard Model Memon Model
Temperature Range 50°C to 250°C 50°C to 300°C
Temperature Accuracy ±1°C ±0.5°C
Temperature Uniformity ±2°C ±1°C
Temperature Resolution 0.1°C 0.1°C
Controller Type Digital PID Controller Touch Screen PLC / HMI
Display LED Display Color Touch Screen
Timer Range 0 – 999 Minutes 1 – 9999 Minutes
Heating System SS Tubular Heater High Efficiency SS Tubular Heater
Air Circulation Natural Convection Forced Air Circulation (Motorized Fan)
Inner Chamber Stainless Steel (SS 304) Stainless Steel (SS 304 / 316 Optional)
Outer Body Powder Coated Mild Steel Powder Coated / SS
Insulation Glass Wool Insulation High Density Ceramic Fiber
Temperature Safety Over Temperature Cut-off Dual Safety Thermostat
Data Logging -NA- Yes
Test Report -NA- Yes
PC Connectivity -NA- USB / Ethernet (Optional)
Power Supply 230V AC, Single Phase 230V / 415V AC
Chamber Size Various Standard Sizes Custom Sizes Available

Test Standards

ISO 188 ISO 75 ISO 291 ISO 11357 ASTM E145 ASTM D5423 ASTM D618 ASTM E41 IS 10810 IS 3400 IS 13360 IS 3025
