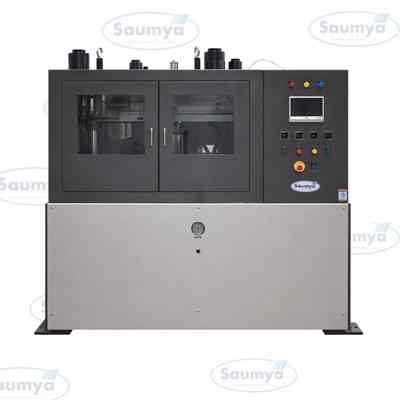

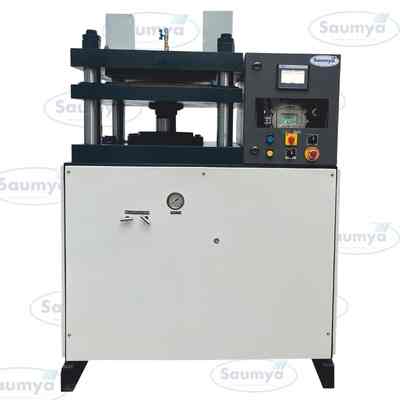

Hydraulic Compression Press

Saumya’s specially configured Hydraulic Compression Press is equipped with precision-engineered heating and cooling platens along with a programmable digital / PLC-based control system, enabling accurate control of temperature, pressure, and cooling cycles. This allows efficient compression molding of test plaques, bar specimens, polyethylene, thermoplastic resins, and rubber materials.

The Hydraulic Compression Press (also known as a compression molding machine) is a specialized equipment used to shape plastic, rubber, and composite materials through the application of heat and pressure. It is widely used for preparing test specimens, sheets, and molded components required for various mechanical and physical testing applications.

The machine is designed to deliver uniform pressure distribution, consistent thickness, and superior surface finish, ensuring reliable and repeatable results. Advanced models are available with touch screen HMI, PLC control, and SCADA software integration, making them suitable for automated operations and data monitoring.

Saumya’s Hydraulic Compression Press is available in various capacities ranging from 10 Tons to 300 Tons, with options for double platen and triple platen configurations, and can be customized as per specific application requirements including compression molding and leak testing applications.

Applications

Used for compression molding of plastic, rubber, and composite materials
Suitable for preparing test specimens for tensile, flexural, impact, and other mechanical tests
Widely used in polymer, rubber, and composite industries
Applied in quality control and research laboratories
Used for lamination and sheet formation of thermoplastic materials
Suitable for molding thermosetting plastics like phenolic and epoxy resin
Used for rubber vulcanization and sheet preparation
Helps in preparing uniform samples for UTM, MFI, and other testing equipment
Applied in automotive, aerospace, and electrical industries
Used for adhesive bonding and multilayer material fabrication
Suitable for high-pressure molding and leak testing applications

USP

High precision hydraulic system ensuring uniform and controlled pressure application
Wide compression force range from 10 Tons to 300 Tons
Equipped with heating and cooling platens for complete process control
Advanced programmable digital / PLC-based control system
Optional SCADA software integration for monitoring and automation

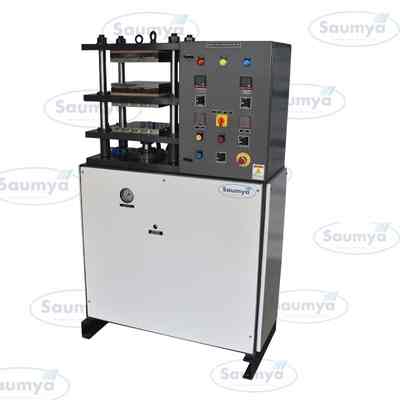

Available in double platen and triple platen configurations
Accurate temperature control using PID controllers
Heavy-duty rigid frame structure for stability and durability
Uniform heating platens ensuring consistent sample quality
Advanced models with automated test cycles and data logging
User-friendly interface with digital display or touch screen HMI
Safety features including emergency stop, pressure relief valve, and overload protection
Optional cooling system for faster cycle time and improved productivity
Low maintenance with long service life and reliable performance.
Customizable design based on customer-specific requirements

Test Standards

ISO 293 ISO 527 ISO 178 ISO 604 ISO 179 ISO 180 ASTM D4703 ASTM D638 ASTM D790 ASTM D695 ASTM D256 ASTM D6110 IS 12701 IS 13360 (part-1)
