Universal Testing Machine (UTM) Models

Universal Testing Machine - UTM-AV

These models are made for low load range measurement. Tabletop models are used for testing Films, Woven bags and small samples of different products to give accuracy and perfection in results.

Universal Testing Machine - UTM-BV

These models are single screw and floor model, applicable for load capacity up to 1000kgf, capable of performing test of tensile, elongation, compression, Flexural, Bending, shear and many more with different attachments.

Universal Testing Machine - UTM-D2

These models are twin columns and floor model, applicable for load capacity up to 20000kgf, capable of performing test of tensile, elongation, compression, flexural, bending, shear, and many more with different attachments.

Universal Testing Machine - UTM-V50T

These models of UTM are operated with Hydraulic systems and floor model, applicable for load capacity up to 50000 kgf, capable of performing test of tensile, elongation, Pulling Strength, Compression and many more with different attachments.

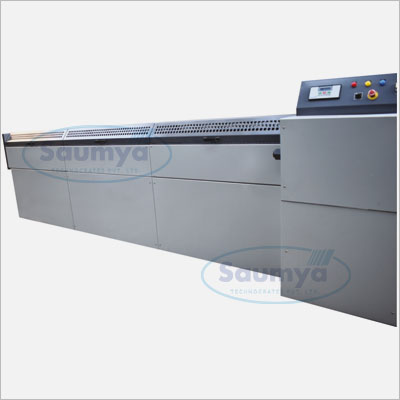

Universal Testing Machine - UTM-H50T

These models of UTM are operated with Hydraulic systems and floor model, Applicable for load capacity upto 50000kgf, Capable of performing Tensile, Elongation, Pulling Strength, Compression. These machines are specially designed for testing ropes, Wires, Column pipes and many more with different attachments.

Product Overview

A UTM (Universal Testing Machine) is a versatile apparatus employed to test the mechanical properties of materials, such as tensile strength, flexural strength, compression strength, pulling, pushing, bending, shearing, stiffness, flattening and more. It is a valuable device for understanding how materials will behave under different loads and conditions.

We prioritize accuracy and precision for repeatable test results. Our machines feature easy-to-use controls, excellent data collection systems, and can be modified with a wide range of grips and other accessories for a fast and reliable testing environment that merges seamlessly with production processes for various products.

Saumya produces a wide range of UTMs to perform tests that demonstrate compliance with standard regulations and facilitate certification processes across many products and industries.

Saumya is one of the leading producers of quality Universal Testing Machines with products ranging from tabletop UTMs to high capacity floor case units and horizontal UTMs. We provide customizability options including SERVO controlled, computerized, and fully automated machines with hot and cold chambers to cater to any industrial use case.

Applications

Used for tensile testing of plastic materials such as PVC, HDPE, LDPE, PP, and other thermoplastics.
Suitable for determining tensile strength, elongation, and mechanical properties of metals and alloys.
Used for flexural and compression testing of plastic sheets, pipes, and molded components.
Applicable for testing rubber, elastomers, and flexible polymer products.
Used in quality control laboratories for evaluating strength and durability of materials.
Ideal for testing cables, packaging materials, and plastic films.
Widely used in research and development laboratories for material performance analysis.
Suitable for educational institutes, testing laboratories, and manufacturing industries.

USP

High precision load measurement ensuring accurate and reliable test results.
Robust and rigid frame construction for stable and vibration-free testing.
Suitable for testing a wide range of materials including plastics, metals, rubber, and composites.
User-friendly control system with digital or computerized operation.
Capable of performing multiple tests such as tensile, compression, flexural, and peel tests.
High quality grips and fixtures available for different testing applications.
Designed for long service life with minimal maintenance requirements.
Compatible with industry testing standards for quality assurance.
Unique models developed by "Saumya" with versatility in mind.
UTMs can be operated completely independently with or without a PC connection.
Universal software capable of performing tests on any type of material.
Multi-layered safety provisions including software, electrical, and mechanical cutoff limits.
Tests on high & low loads with variable cross-head travel speeds can be executed smoothly.
Intelligent electromechanical system with a 24-bit load cell-to-instrument data transfer ratio for instantaneous feedback.
Versatile software mapping tool to visualize material deformation curves and real-time stress/strain graphs.
Selectable standard engineering measurement units (e.g., Newtons, Kilograms) directly inside software panels.
Pre-specified geometric profile parameters window for round or custom-shaped specimens for direct area calculations.

Model Specification

Features	UTM-AV	UTM-BV	UTM-D2	UTM-V50T	UTM-H50T
Model Type	Table Top Model	Single Screw Floor Model	Twin Column Floor Model	Hydraulic Floor Model	Hydraulic Floor Model
Load Capacity	Low Load Range	Up to 1000 kgf	Up to 20000 kgf	Up to 50000 kgf	Up to 50000 kgf
Structure	Compact Table Top	Single Screw	Dual Column	Hydraulic System	Hydraulic System
Test Types	Basic material testing	Tensile, Compression, Flexural, Bending, Shear	Tensile, Compression, Flexural, Bending, Shear	Tensile, Compression, Pulling Strength	Tensile, Compression, Pulling Strength
Elongation Testing	Available	Available	Available	Available	Available
Application	Films, Woven Bags, Small Samples	General Material Testing	Heavy Duty Material Testing	Very High Load Industrial Testing	Ropes, Wires, Column Pipes, Heavy Industrial Materials
Attachments	Basic attachments	Multiple attachments supported	Multiple attachments supported	Multiple heavy-duty attachments	Specialized heavy-duty attachments
Operation	Accurate & precise testing	Versatile testing system	High performance testing	Hydraulic high load testing	Hydraulic high load testing (Special applications)

Industry Nomenclature: This equipment is also widely known across engineering fields as a Universal Tensile Tester, Computerised Universal Tensile Tester, Automatic Universal Tensile Tester, Plastic Universal Tensile Tester, Universal Testing Machine for Plastic Lab, Tensile Strength Tester, Plastic Tensile Test Measurement Machine, Twin Screw Tensile Tester, Tensile with Compression Tester, Plastic Film Tensile Tester, Plastic Maximum Tensile Strength Measurement, Universal Materials Testing Machines, Plastic Material Testing Machine, and Universal Tester.

Test Standards

ISO 527 ISO 37 ISO 6259 ISO 7520 ISO 6892 ASTM D638 ASTM D412 IS 13360 IS 4984 IS 13592 IS 12235 IS 15778 IEC 0811 IEC 60277 IEC 60502
